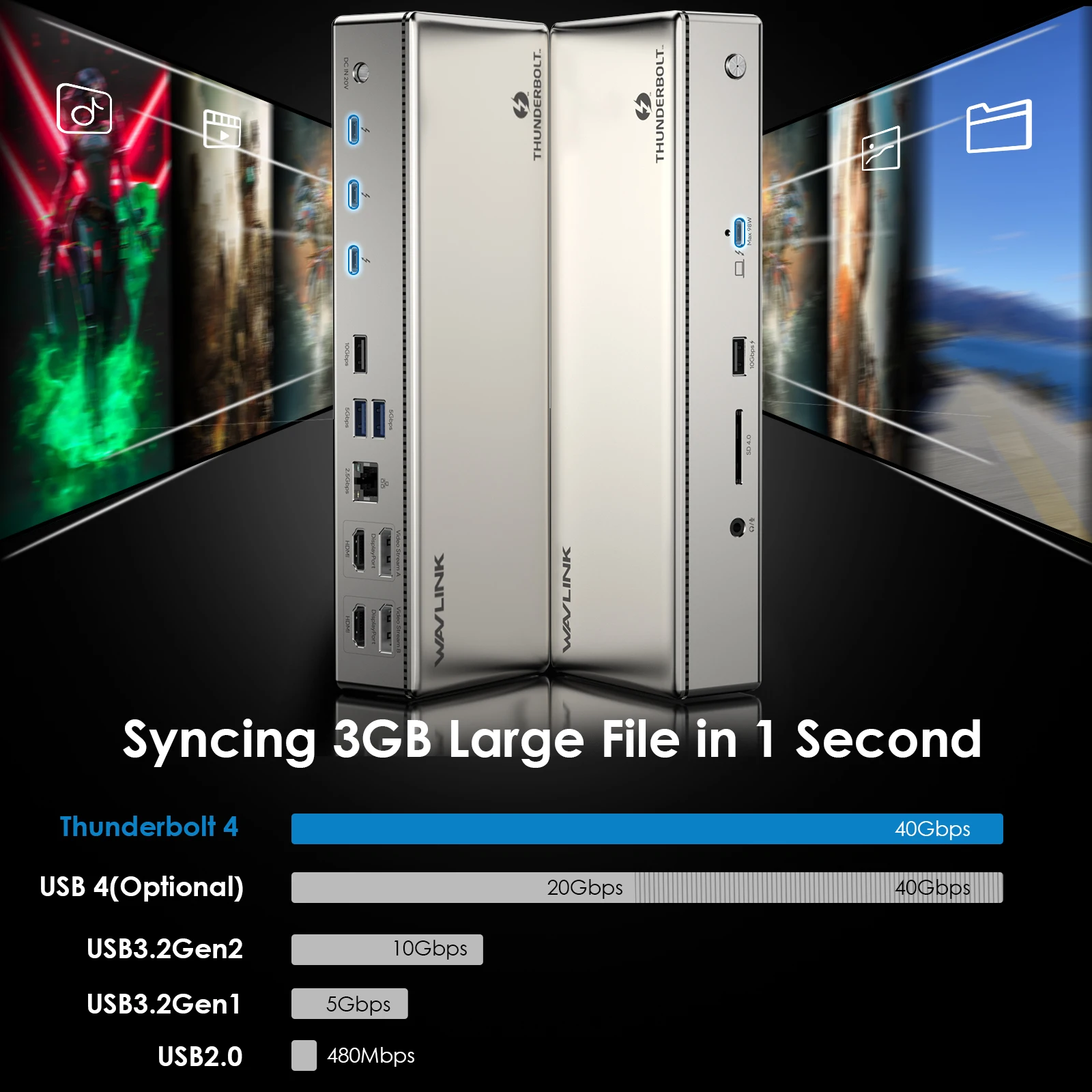

WAVLINK Thunderbolt 4 Quad Display Dock 2.5G 40Gbps Docking Station Single 8K@30Hz Quad 4K@60Hz With 98W Laptop Charging For Mac
WAVLINK Thunderbolt 4 Quad Display Dock 2.5G 40Gbps Docking Station Single 8K@30Hz Quad 4K@60Hz With 98W Laptop Charging For Mac
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: WAVLINK
Origin: Mainland China
Length: 24
Certification: CE
Package: Yes
Material: Aluminum
Width: 8.11

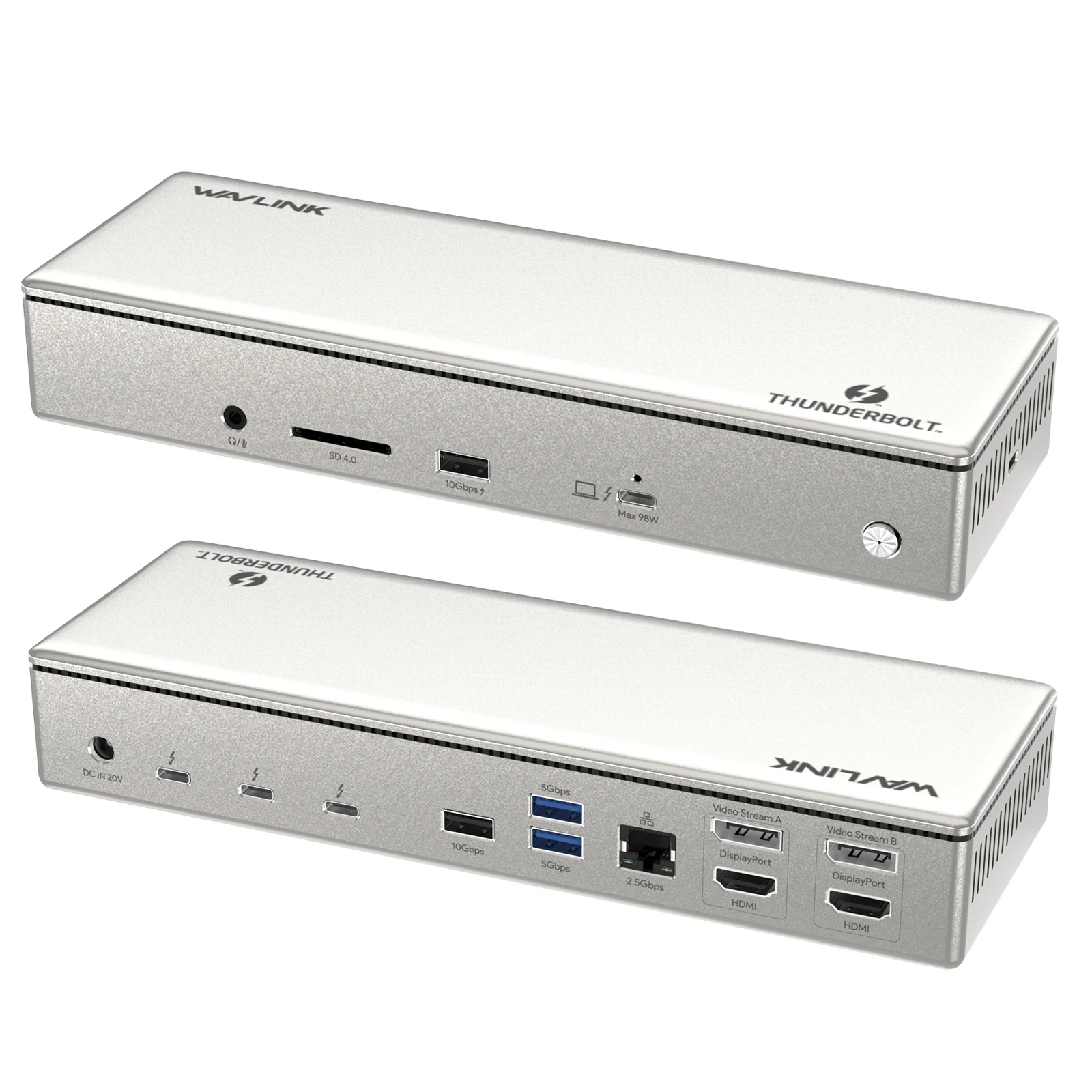

Model Number: UTD41Pro Thunderbolt 4 Quad Display Docking Station
Plug Type: EU Plug
Plug Type: US PLUG
Plug Type: JP plug
Plug Type: UK Plug
Plug Type: AU Plug
Type: Laptop Docking Stations
Power Supply: DC20V/10A 200W
Voltage: 100-240 V 50/60Hz
System Support: Thunderbolt 4 PC running Windows 10/11. Thunderbolt 3/4 Mac running Mac OS 11 or later.
Thunderbolt 4 Max. Pixels: Resolutions up to 8K@30Hz
DisplayPort/HDMI Max. Pixels: Resolutions up to 4K@60Hz
Product: Single 8K Display Docking Station
Type: Multiple 4K Display Docking Station

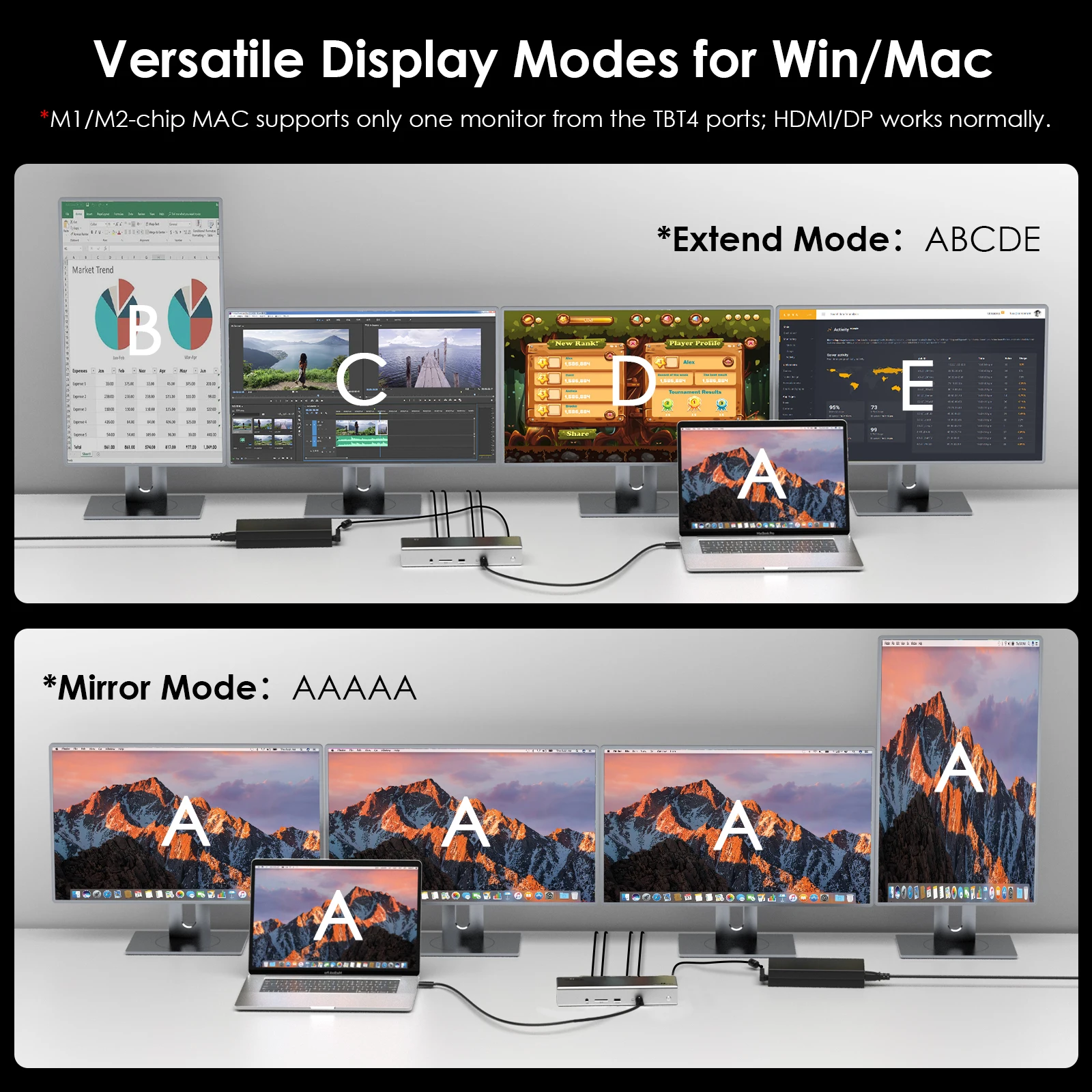

Function: extend /mirror screen
use: for MacBook Pro/Air and More
Feature 1: thunderbolt 4 docking station, thunderbolt 4 display dock
Feature 2: thunderbolt 4 laptop dock, 40gbps docking station
Feature 3: hdmi/displayport docking station
Feature 4: usb-c docking station with charging

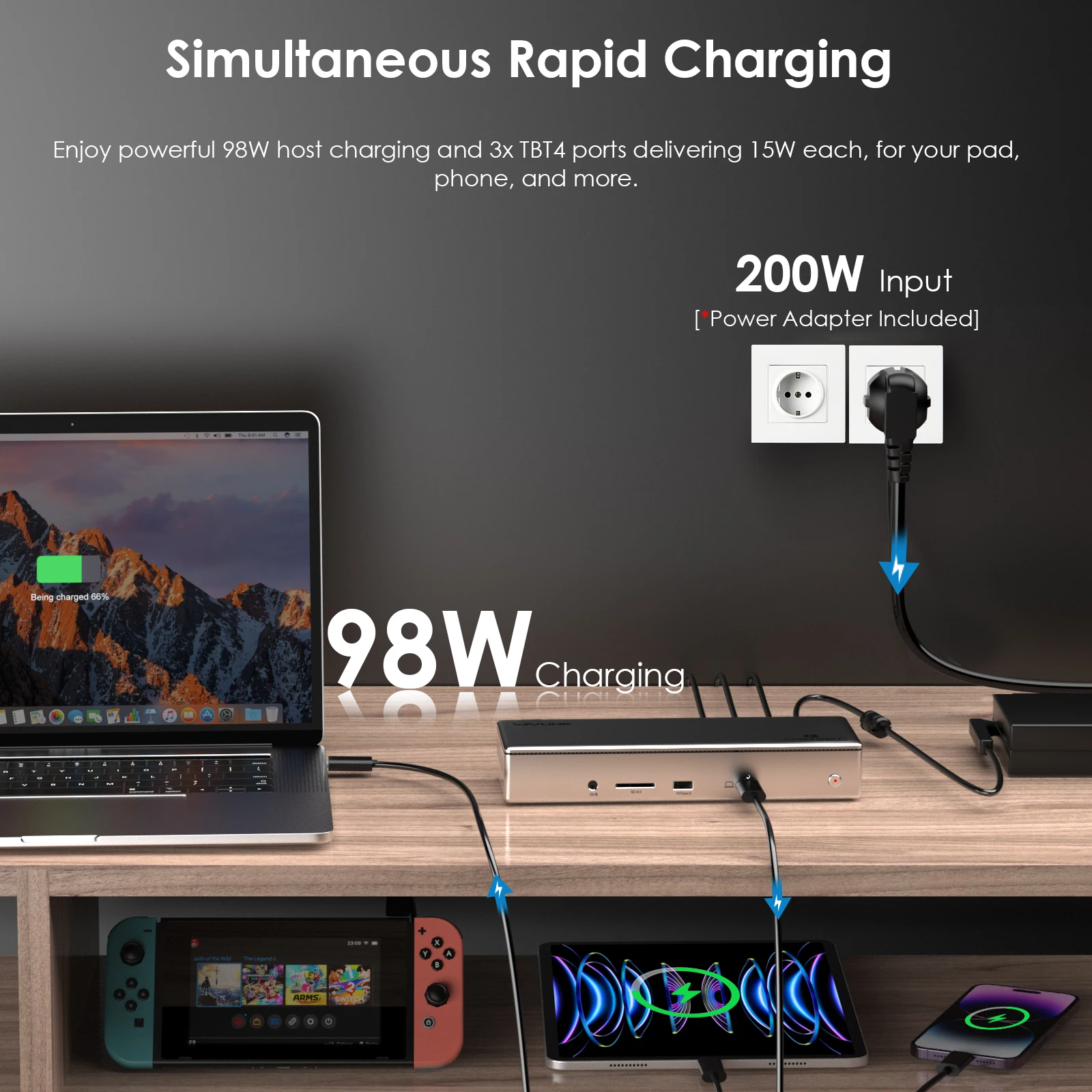

Feature 5: 98w charging dock, usb power delivery dock

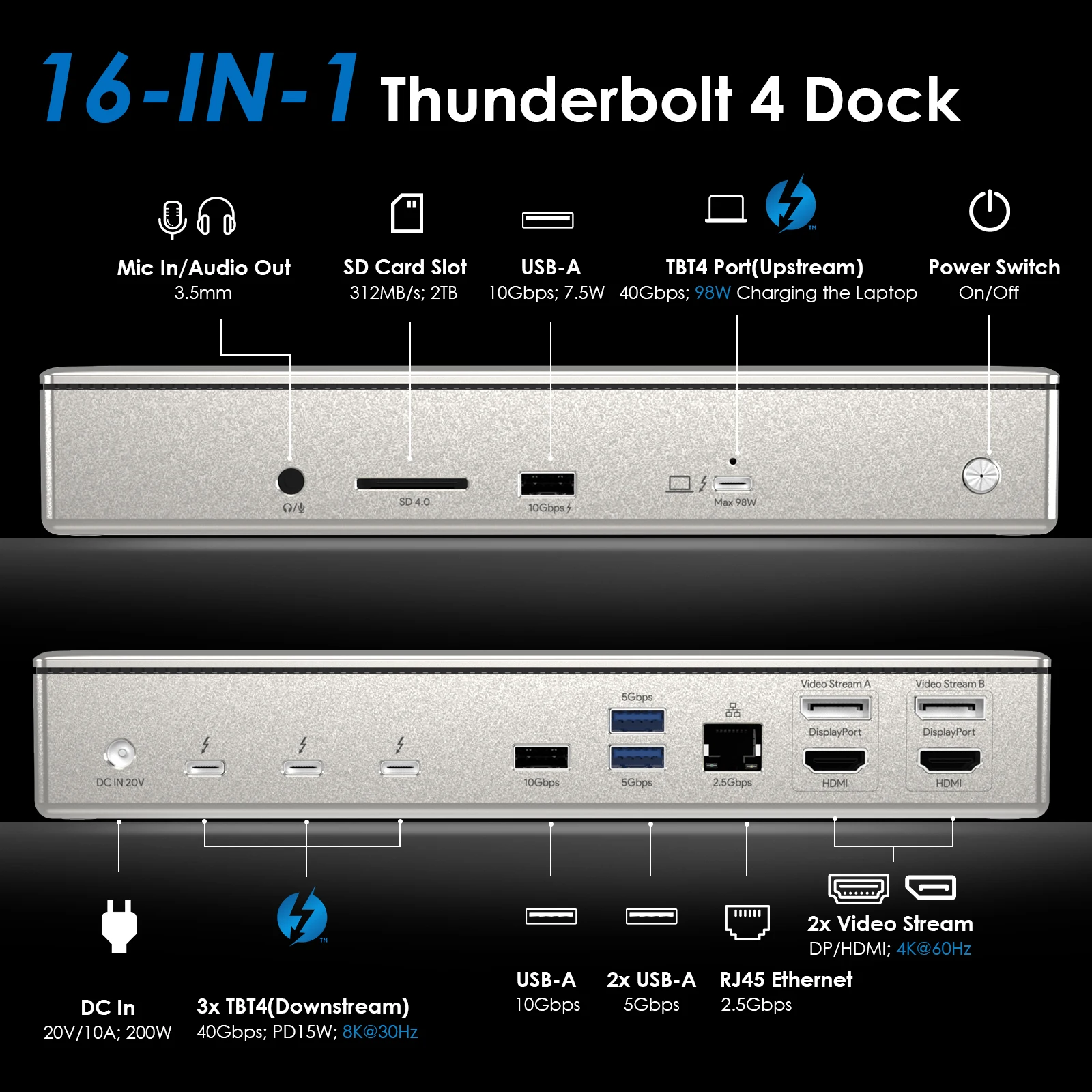

WAVLINK Thunderbolt 4 Quad Display Dock (16-in-1), 40Gbps Docking Station with 98W Laptop Charging, Single 8K@30Hz Quad 4K@60Hz, 2.5G RJ45, SD V4.0, 10Gbps USB3.1 for MacBook Pro/Air and More
Product features:
-Two video streams support dual 4K@60Hz display. One video stream can only choose one.

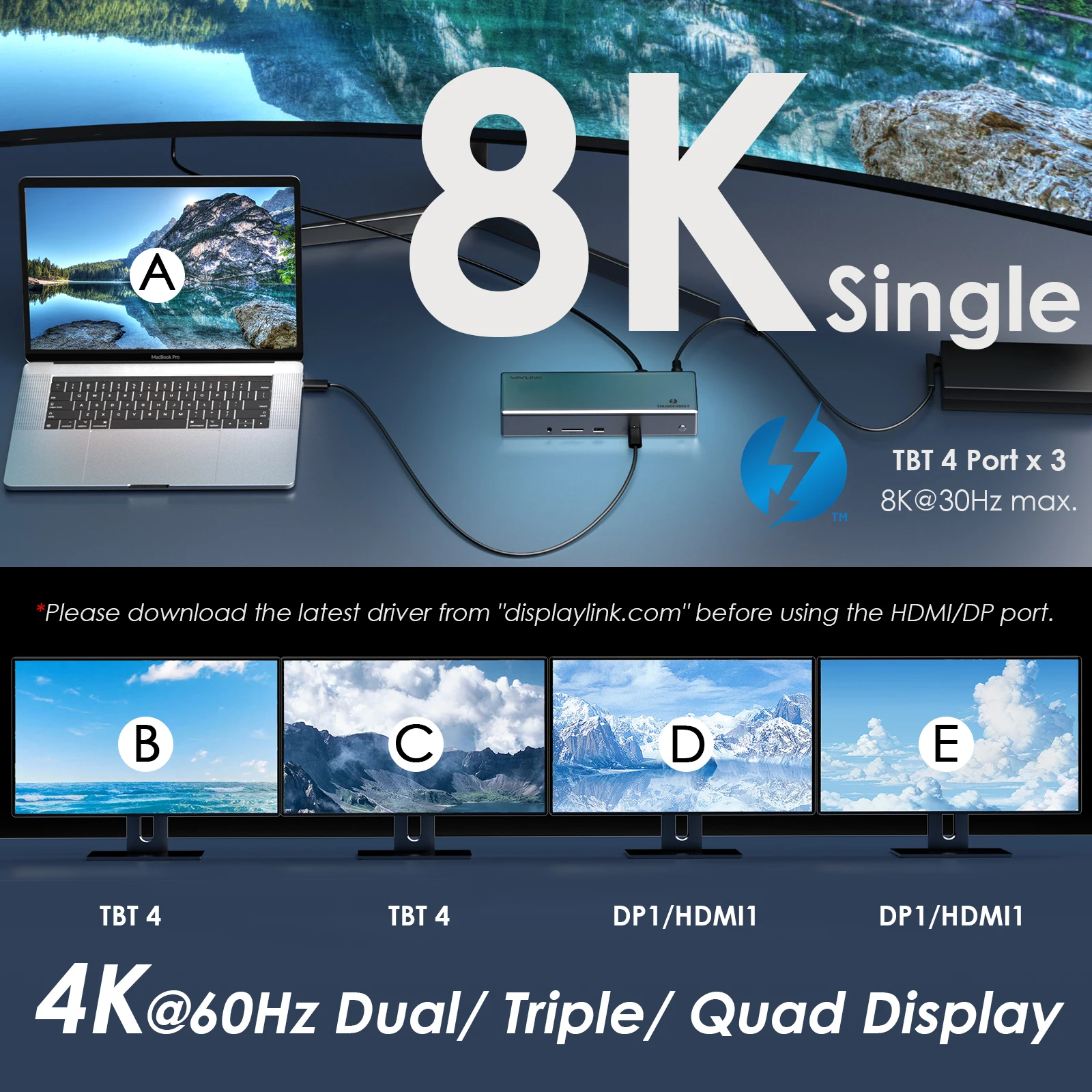

-Three Thunderbolt 4 downstream ports support single 8K@30Hz, and dual 4K@60Hz display. Two video streams combined with any two downstream Thunderbolt 4 ports can work for four 4K@60Hz video output.

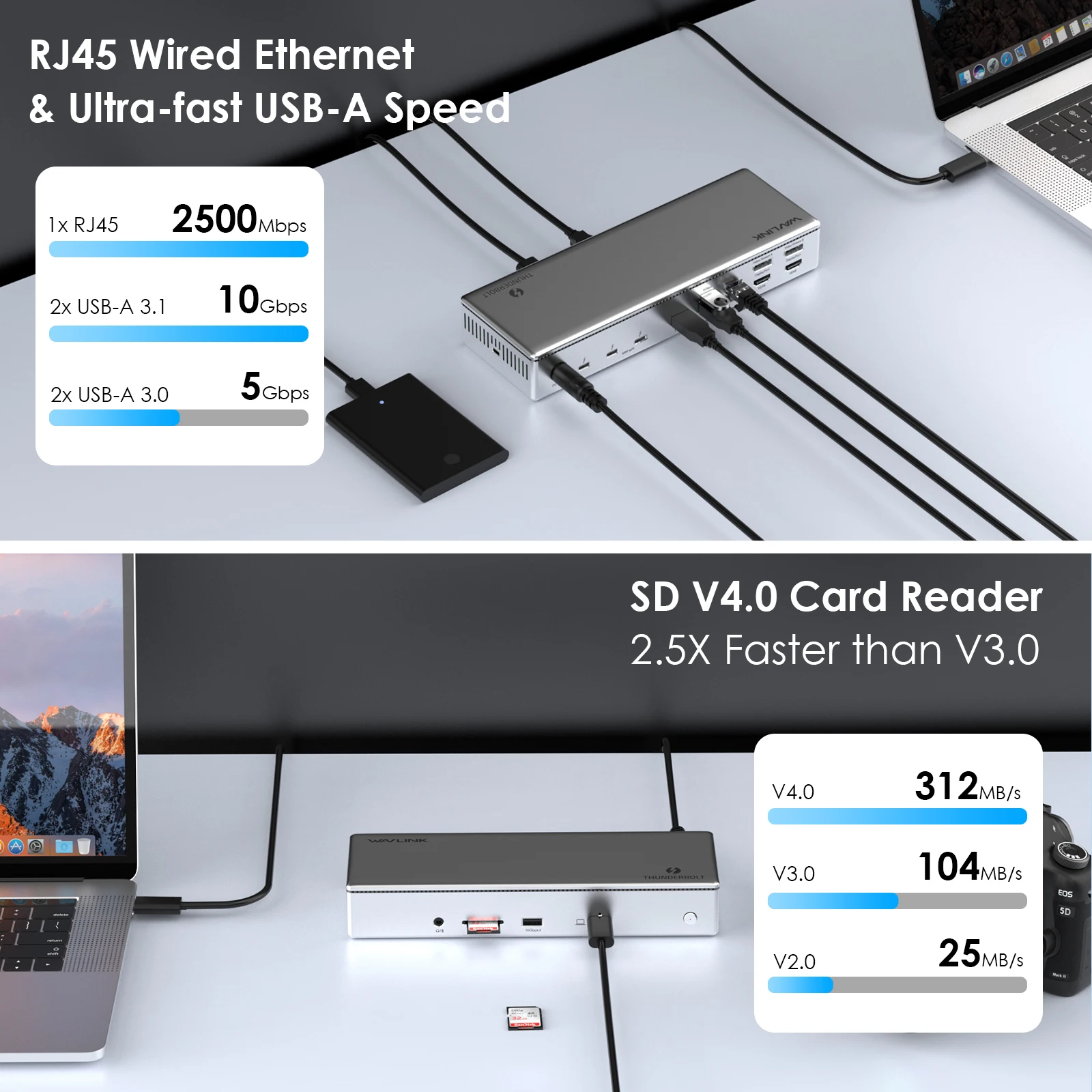

-One RJ45 port supports 2.5G Ethernet and is backward compatible with 1000/100/10Mbps networks.
-Two USB-A ports have a data transfer speed of up to 10Gbps. Two USB-A ports have a data transfer speed of up to 5Gbps.
-One integrated SD V4.0 Card Reader with an SD slot supports UHS-II theoretical bus speed of up to 312MB/s and is also backward compatible with SDXC, SDHC, and standard SD cards.

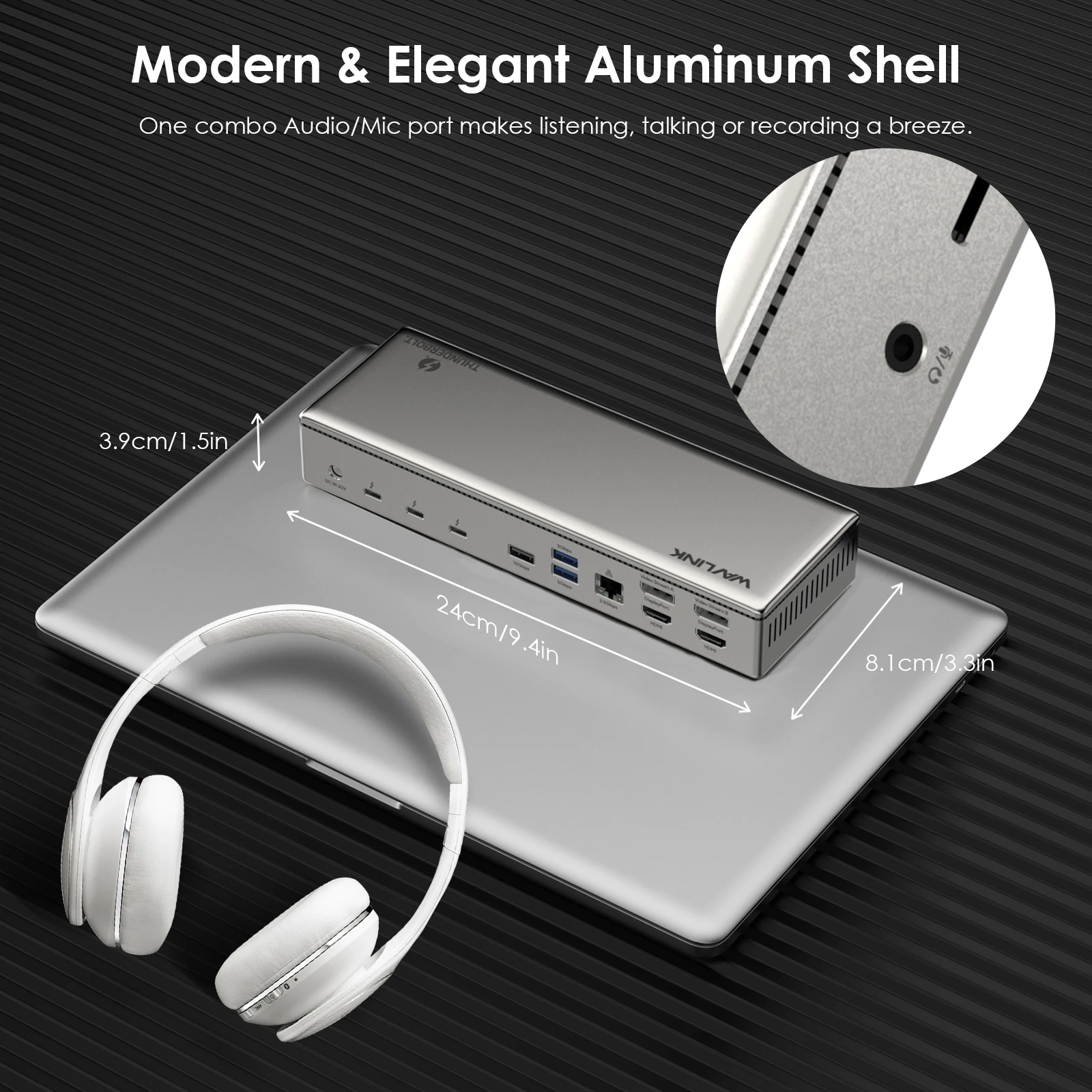

-One 3.5mm Audio/Mic interface supports CTIA/OTMP headphones and microphone.

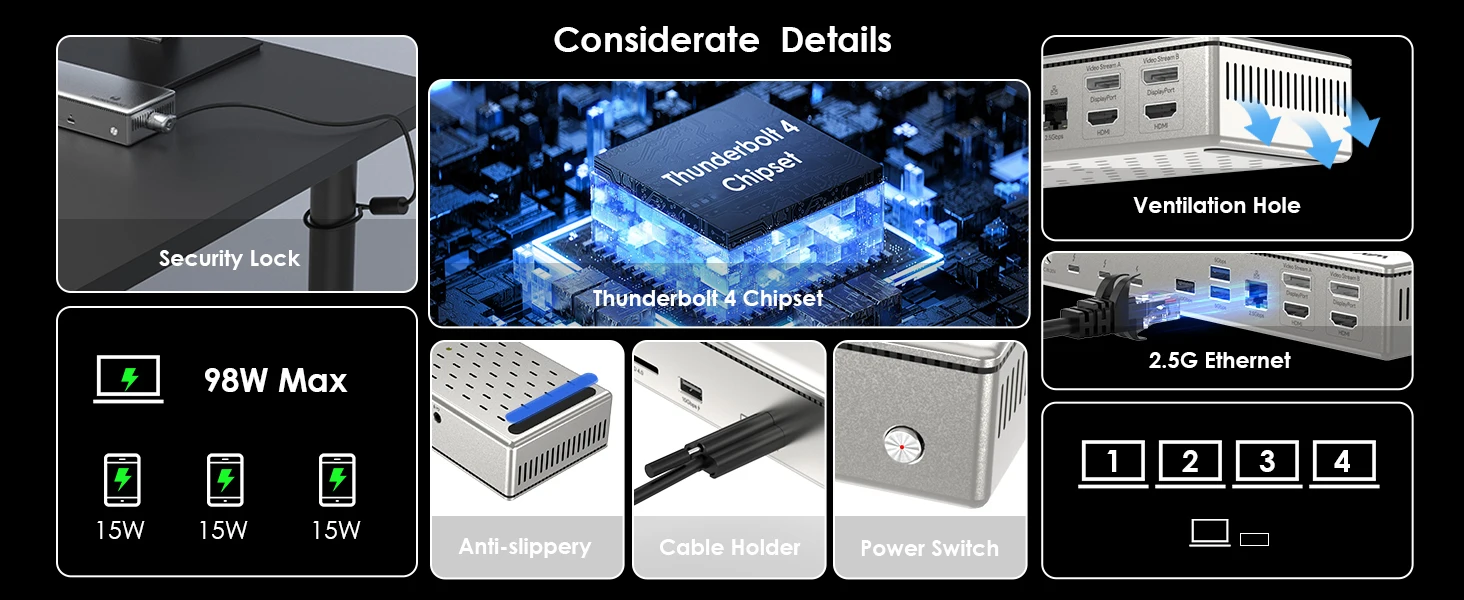

-One Kensington lock prevents theft of the device.

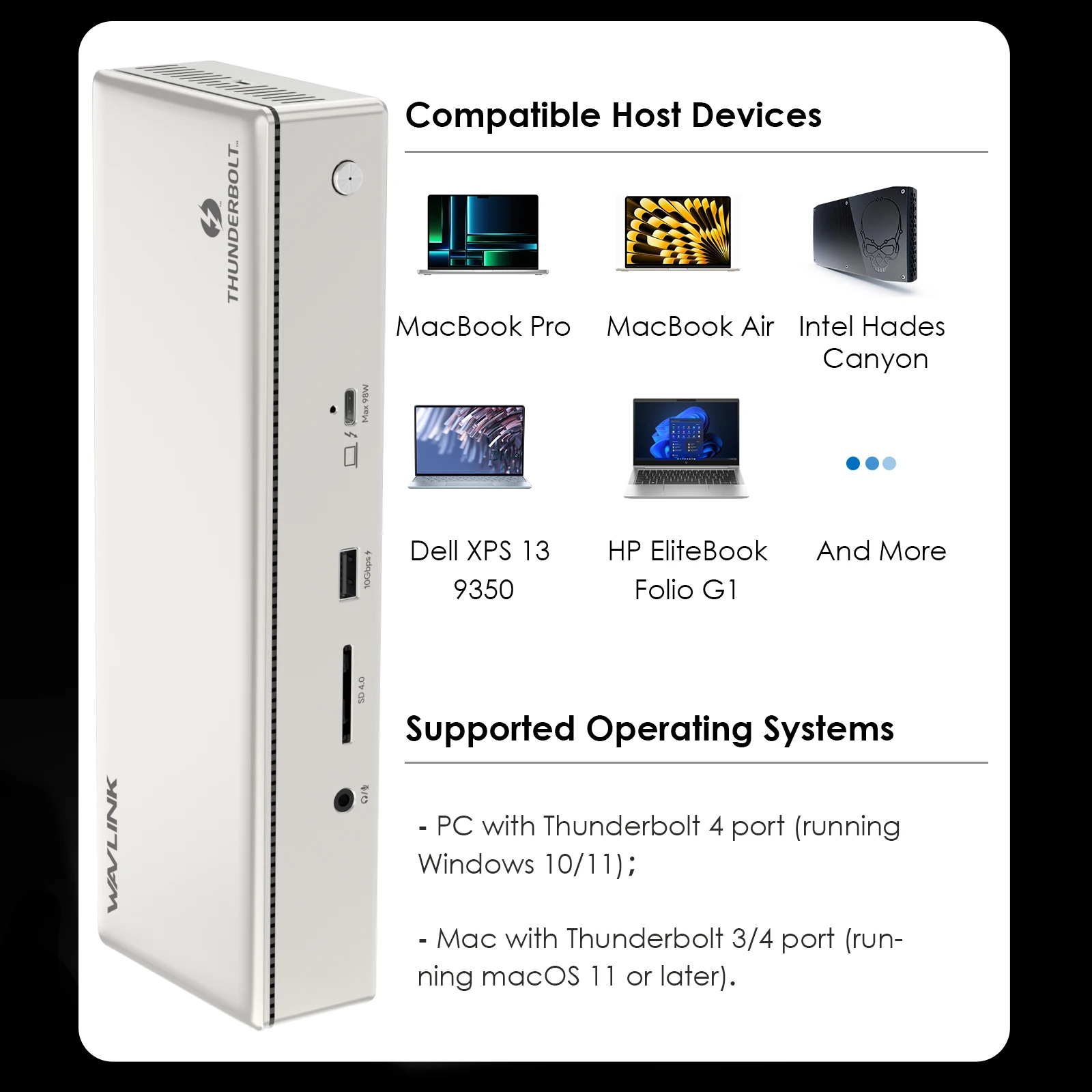

System Requirement:
Thunderbolt 4 PC running Windows 10/11.
Thunderbolt 3/4 Mac running Mac OS 11 or later.
Warm Tips:
1. The three Thunderbolt 4 ports support a maximum of two displays.
2. Each video stream group allows the use of only one port. In video stream A and video stream B, you can only use either the DisplayPort or HDMI port, not both at the same time.
3. M1/M2-based Mac can only have one video output from the three Thunderbolt 4 ports, but the HDMI/DP ports function normally.

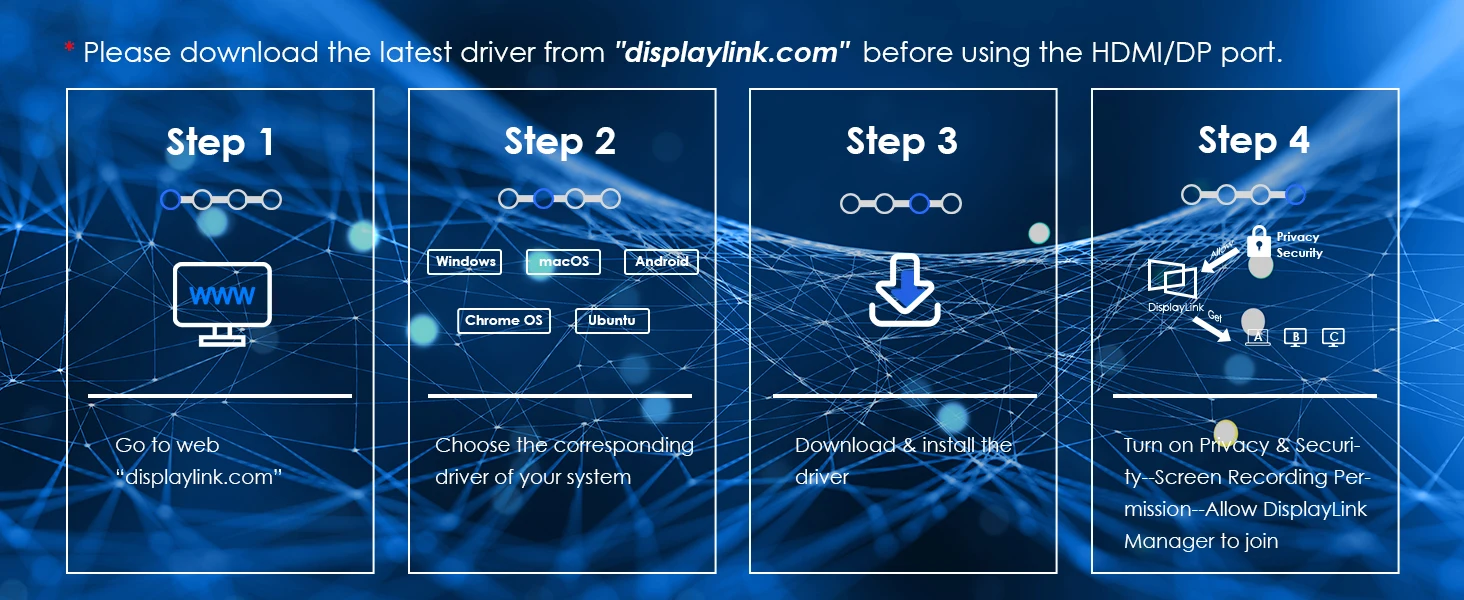

4. Please download the latest driver from displaylink.com before using the HDMI/DP ports.

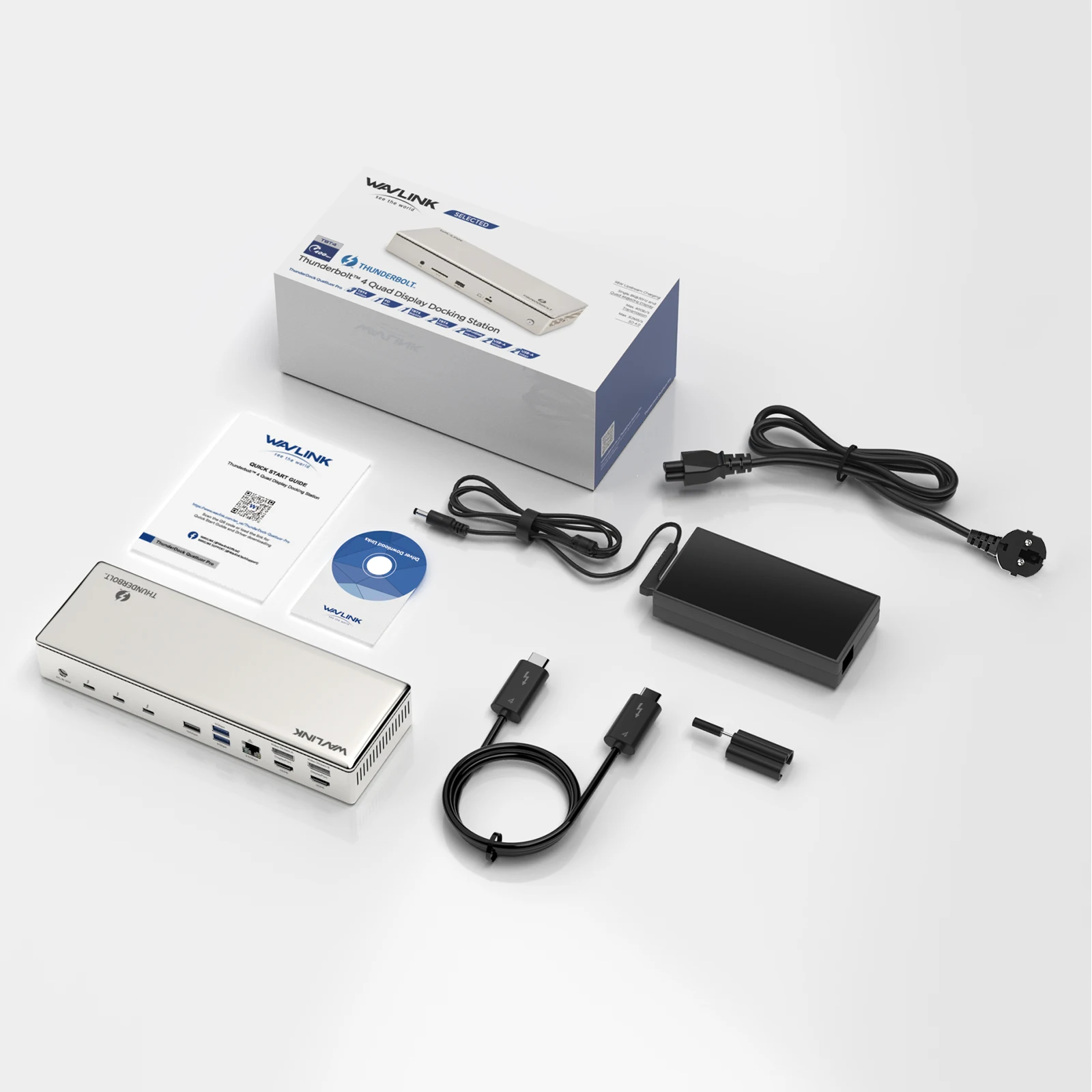

5. Please ensure the power connection is maintained (power adapter included in the package) while using this docking station.
6. To enable support for 8K display, the computer's USB-C port must support DP1.4.
7. For more USB-C non-Thunderbolt 3/4 laptops, the performance will be limited.
8. The dock does not support HDCP.
9. All downstream Thunderbolt 4 ports and one USB 3.1 fast charging port support offline charging, enabling peripheral devices to be charged even when the computer is disconnected or powered off.
